Zinc Plated hydraulic quick disconnect couplings, Carbon Steel Hydraulic Coupling

Ask Lasest Price
Brand Name :	QPE
Model Number :	KZB SERIES
Certification :	ISO9000
Price :	Negotiable
Supply Ability :	90,000pcs/week, according the capacity of the assembly workshop
Delivery Time :	within 30 days or as per customers' requirement.

Add to Cart

Product Details
Company Profile

Zinc Plated hydraulic quick disconnect couplings, Carbon Steel Hydraulic Coupling

Carbon steel hydraulic quick release coupling for ISO 7241-1 B Interchange Feature: 1. Poppet valves available to prevent uncoupled leakage. 2. Poppet valves open automatically when coupled, within rated working pressure, to keep the expedite flowing. 3. Critical parts are hardened for durability. 4. Durable ball-locking mechanism holds the mating halves together. 5. Socket and plug are precision machined from solid bar stock. 6. Carbon steel hydraulic quick release coupling series conforms to the standard of ISO7241-1B. Compatible with PARKER 60 Series: FASTER HNV Series: AEROQUIP FD45 Series and HANSEN HK Series. Application: Carbon steel hydraulic quick release coupling KZB sereis is mainly applied for hydraulic fluid lines as well as the chemical water, steam, and some gases transfer lines.

Part No.	ISO	Thread			Size (inch)	Working Pressure (PSI)	Rated Flow (L/min)	Temperature Range (°C)
Part No.	ISO	Thread			Size (inch)	Working Pressure (PSI)	Rated Flow (L/min)	Temperature Range (°C)
KZB-01	DN3	ZG1/8	G1/8	NPT1/8	1/8	7500	5	NBR :-25~125
KZB-02	DN6.3	ZG1/4	G1/4	NPT1/4	1/4	6750	17
KZB-03	DN10	ZG3/8	G3/8	NPT3/8	3/8	4500	50
KZB-04	DN12.5	ZG1/2	G1/2	NPT1/2	1/2	5250	75
KZB-06	DN20	ZG3/4	G3/4	NPT3/4	3/4	3625	190
KZB-08	DN25	ZG1	G1	NPT1	1	4500	270
KZB-10	DN31.5	ZG1-1/4	G1-1/4	NPT1-1/4	1-1/4	2100	750
KZB-12	DN40	ZG1-1/2	G1-1/2	NPT1-1/2	1-1/2	2100	750
KZB-16	DN50	ZG2	G2	NPT2	2	1350	1600

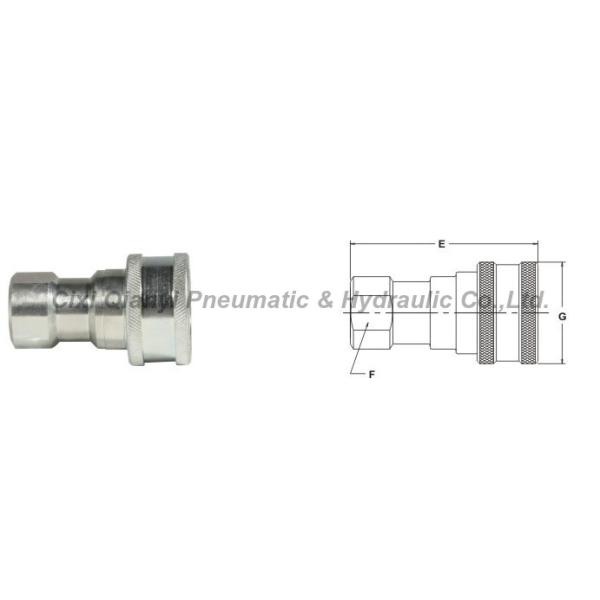

Performance: Socket:

PART NO.	Thread	E	F	G	PART NO.		E	F	G
(mm.) (mm.) (mm.)					(in.) (in.) (in.)
KZB-01SF	G1/8	48.0	17.0	24.0	KZB-01SF	NPT1/8	1.90	0.68	0.96
KZB-02SF	G1/4	57.0	21.0	29.0	KZB-02SF	NPT1/4	2.26	0.81	1.14
KZB-03SF	G3/8	63.0	22.0	36.0	KZB-03SF	NPT3/8	2.49	0.88	1.40
KZB-04SF	G1/2	73.0	28.0	45.0	KZB-04SF	NPT1/2	2.87	1.12	1.77
KZB-06SF	G3/4	90.0	33.0	54.0	KZB-06SF	NPT3/4	3.56	1.31	2.14
KZB-08SF	G1	106.0	41.0	64.0	KZB-08SF	NPT1	4.18	1.62	2.52

Plug:

PART NO.	Thread	A	C	D	PART NO.		A	C	D
(mm.)(mm.)(mm.)					(in.) (in.) (in.)
KZB-01PF	G1/8	41.0	14.0	17.0	KZB-01PF	NPT1/8	1.61	0.56	0.65
KZB-02PF	G1/4	35.0	19.0	22.0	KZB-02PF	NPT1/4	1.39	0.75	0.87
KZB-03PF	G3/8	38.0	22.0	26.0	KZB-03PF	NPT3/8	1.50	0.88	1.01
KZB-04PF	G1/2	44.0	28.0	33.0	KZB-04PF	NPT1/2	1.75	1.12	1.30
KZB-06PF	G3/4	74.0	35.0	40.0	KZB-06PF	NPT3/4	2.16	1.38	1.59
KZB-08PF	G1	66	41.0	48.0	KZB-08PF	NPT1	2.91	1.62	1.88

Socket

PART NO.	Thread	E	F	G	PART NO.		E	F	G
(mm.) (mm.) (mm.)					(in.) (in.) (in.)
KZB12-10SF	G1 1/4	123.5	60.0	76.5	KZB-02SF	NPT1/4	4.85	2.36	3.00
KZB12-12SF	G1 1/2	127.5	60.0	76.5	KZB-03SF	NPT3/8	5.01	2.36	3.00
KZB16-16SF	G2	145	95.0	101.5	KZB-04SF	NPT1/2	5.7	3.74	3.98
KZB16-20SF	G2 2/1	153.5	101.0	104.5	KZB-06SF	NPT3/4	6.04	3.75	4.10
KZB16-24SF	G3	176.5	110.5	110.5	KZB-08SF	NPT1	6.95	4.00	4.35

Plug

PART NO.	Thread	A	C	D	PART NO.		A	C	D
(mm.) (mm.) (mm.)					(in.) (in.) (in.)
KZB12-10PF	G1 1/4	121.0	60.0	74.5	KZB-02PF	NPT1/4	4.75	2.35	2.95
KZB12-12PF	G1 1/2	124.5	60.0	74.5	KZB-03PF	NPT3/8	4.90	2.35	2.95
KZB16-16PF	G2	142.5	95.0	104.5	KZB-04PF	NPT1/2	5.65	3.75	4.10
KZB16-20PF	G2 2/1	151.5	95.0	104.5	KZB-06PF	NPT3/4	5.95	3.75	4.10
KZB16-24PF	G3	175.0	101.5	111.5	KZB-08PF	NPT1	6.87	4.00	4.39
